Round Tempered Solar Glass Ultra White 3.2mm 4 mm Thickness For Solar Panel

500 Square Meter/Square Meters
MOQ
negotiation
Price
Round Tempered Solar Glass Ultra White 3.2mm 4 mm Thickness For Solar Panel
Features Gallery Product Description Request A Quote
Features
Specifications
Other Name: Solar Panel Glass
Color: Ultra Clear
Technique: Clear Glass, Frosted Glass, Tempered Glass
Size: 3.2mm And 4mm
Feature: High Light Transmittance
Edge: Round Edges
Application: Solar Panel
Highlight:

solar module glass

,

solar photovoltaic glass

Basic Infomation
Place of Origin: Hebei, China
Brand Name: YIWO
Model Number: Float Glass
Payment & Shipping Terms
Packaging Details: Paper Interred Between The Solar Glass, Packed By Strong Seaworthy Wooden Crates
Supply Ability: 300 Ton/Tons per Month
Product Description

Tempered Ultra White 3.2mm 4mm Round Edge Solar Glass For Solar Panel



Product Description



  Solar glass are specially designed for encapsulation material of solar modules. The design reduces the direction reflectance and increase the internal reflection that the solar energy can be absorbed effectively. It ensures the maximum transmittance of the solar and raise the efficiency of electricity generation.

  The glass observes the properties of high solar transmittance, low absorbance, low reflectance, superior physical strength and significant flatness, is the ideal encapsulation material for solar thermal and photovoltaic modules.



Details:



1. Solar glass is also called photovoltaic glass and energy saving glass which

mainly used on solar panel because of its super light transmittance rate.

2. Solar panel is a thin layer of optoelectronic semiconductor which converting solar energy into electricity.

3. By considering its efficiency, we are using High-transmittance and low reflection glass for its panel. This high strength glass maintains the best image quality by elimination unwanted distortions with the advanced optical technology.



Glass Specification



Type
Tempered ultra white 3.2mm 4mm round edge solar glass
Thickness 3.2mm,4mm
Size Min size 200*300mm, Max size 2200*1250mm,
Further Process cleaning, cutting, rough grinding, hole, etc.
Surface Mistlite single pattern or ultra clear
Visible light Transmittance 91.60%
Visible light reflectance 7.30%
Solar Transmittance 92%
Solar reflectance 7.40%
UV transmittance 86.80%
Total solar heat gain coefficient 92.20%
Shading Coefficient 1.04% Performance varied due to different thickness
Usage It is widely used as solar power generator, water heater .




Products Pictures:

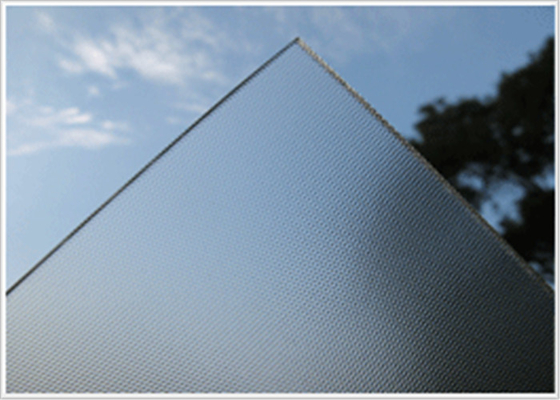

Round Tempered Solar Glass Ultra White 3.2mm 4 mm Thickness For Solar Panel 0

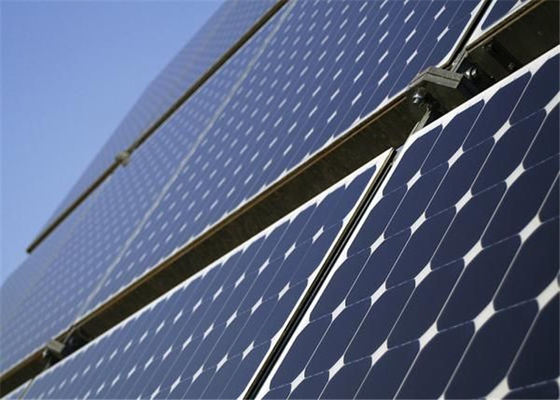

Round Tempered Solar Glass Ultra White 3.2mm 4 mm Thickness For Solar Panel 1



Packaging&Delivery:



Packing Details: Paper interred between the solar glass, packed by strong seaworthy wooden crates or according to your requirements.



Round Tempered Solar Glass Ultra White 3.2mm 4 mm Thickness For Solar Panel 2
