3.2mm Low Iron Tempered Solar Glass Curve / Flat Shape For Patterned Texture PV Panel

100 Square Meter/Square Meters
MOQ
negotiation
Price
3.2mm Low Iron Tempered Solar Glass Curve / Flat Shape For Patterned Texture PV Panel
Features Gallery Product Description Request A Quote
Features
Specifications
Other Name: Solar PV Glass
Shape: Curve, Flat
Thickness: 3.2mm, 4mm
Application: Solar
Transmittance: 91.6%
Price: Competitive
Tolerance: +-1mm
Function: Heat Absorbing Glass
Highlight:

solar pv glass

,

solar photovoltaic glass

Basic Infomation
Place of Origin: Hebei, China
Brand Name: YIWO
Model Number: FLOAT GLASS
Payment & Shipping Terms
Packaging Details: Strong Seaworthy Wooden Crates
Supply Ability: 50000 Square Meter/Square Meters per Month
Product Description

3.2mm Low Iron Tempered Solar Glass For Patterned Texture PV Panel



Specifications



3.2mm tempered patterned low iron glass


1. low iron glass

2. super white glass

3. thickness:3.2mm, 4mm

4. patterned glass/float glass



  Solar glass is also called photovoltaic glass which mainly used on solar panel because of its super light transmittance rate. Solar panel is a thin layer of optoelectronic semiconductor which converting solar energy into electricity. By considering its efficiency, we are using High- transmittance and low reflection glass for its panel. This high strength glass maintains the best image quality by eliminating unwanted distortions with the advanced optical technology.



Types Available:



LOW IRON PATTERNED GLASS (Annealed or Tempered)

LOW IRON FLOAT GLASS (Annealed or Tempered)



Features:



1. High light transmission, more than 91.6%.

2. Low optical defects, comply with EN572-5/94.

3. Easily to be cut, coated and tempered.



NAME THICKNEESS SOLAR TRANSIMITION LIGHT TRANSIMITION
LOW IRON SOLAR GLASS 3.2 >91.6% >91.6%



Technical Parameters



A. Glass thickness: 2mm~6mm regular thickness: 3mm, 4mm, 6mm

B. Thickness tolerance: 0.2mm

C. Visible light (320~1100nm)transmittance(3.2mm thickness):over 91.6%

D. Iron content:below 150ppm

E. Poisson's ratio:0.2

F. Density: 2.5g/cc

G. Young's elastic modulus: 73Gpa

H. Tensile modulus: 42Mpa

I. Hemisphaerium radiance: 0.84

J. swelling coefficient: 9.03×10-6/°C

K. Softening Point: 720°C

L. Annealing Point: 50°C

M. Strain Point: 500°C



Products Pictures:

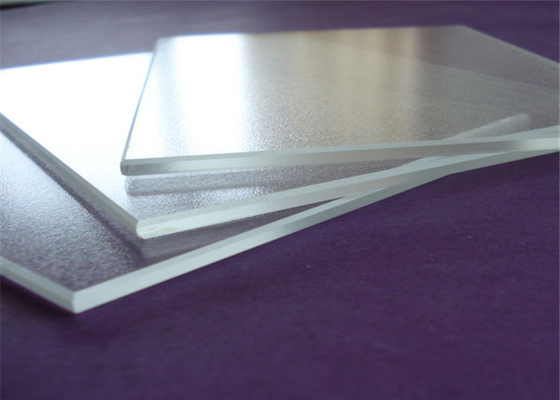

3.2mm Low Iron Tempered Solar Glass Curve / Flat Shape For Patterned Texture PV Panel 0

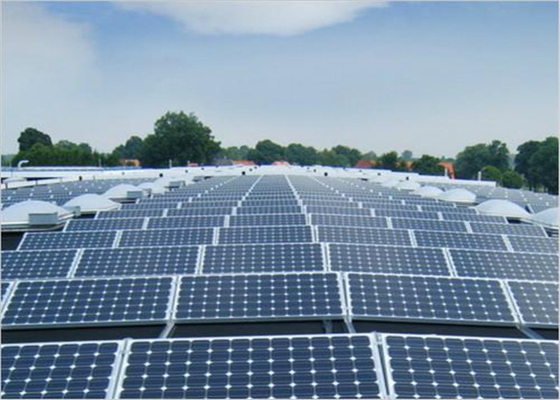

3.2mm Low Iron Tempered Solar Glass Curve / Flat Shape For Patterned Texture PV Panel 1



Packaging&Delivery:



Packing: 1. Interlayer fresh paper or powder between each glass lite;
               2. Plastic film protects glass inside crate;
               3. Outside strong plywood crates or fumigated wooden crates with steel banding for export





3.2mm Low Iron Tempered Solar Glass Curve / Flat Shape For Patterned Texture PV Panel 2
