Ultra White Low Iron Solar Glass / Patterned Transparent Solar Glass For Solar Panel

3 Square Meter/Square Meters
MOQ
negotiation
Price
Ultra White Low Iron Solar Glass / Patterned Transparent Solar Glass For Solar Panel
Features Gallery Product Description Request A Quote
Features
Specifications
Other Name: Tempered Solar Glass
Technique: Clear Glass, Coated Glass
Shape: Flat, Curve
Color: Ultra White
Type: Patterned Glass
Function: Heat Absorbing Glass
Structure: Solid
Size: 1634*985mm, 1634*986mm, 1600*2200mm, Etc.
Highlight:

solar pv glass

,

solar module glass

Basic Infomation
Place of Origin: Hebei, China
Brand Name: YIWO
Model Number: Float glass
Payment & Shipping Terms
Packaging Details: Plywood Case with Paper Between Glass
Product Description

Ultra White Low Iron Patterned Tempered Solar Glass For Solar Panel



Product Description



  High transparent glass is ultra-white glass takes full advantage of the diffuse reflection of the pattern to decrease the light reflection. Thus has a very high solar transmittance at any angle incidence. It is the ideal encapsulation material for solar panels(PV modules) and the flat solar thermal products.



Feature:


1. Low iron Glass
2. Perfect heat resistant
3. High solar transmittance

4. Reduce Light Reflection
5. Eco-friendly
6. With the non-toxic chemical composition, it conforms to the rigorous environmental requirement of Europe, USA and Japan.



Specification :



thickness : 3.2-4mm

Maximum size: 2250*3500mm(annealed)
1219*1930mm (tempered),

Thickness: 3.2&4mm

Solar transmittance:(3.2mm polished samples ISO9050/2003)>=91.7%



Scope of Applications:


Use For Solar, Photovoltaic Module; Street Lamp Lens; Building Glass Curtain Wall



Product pictures

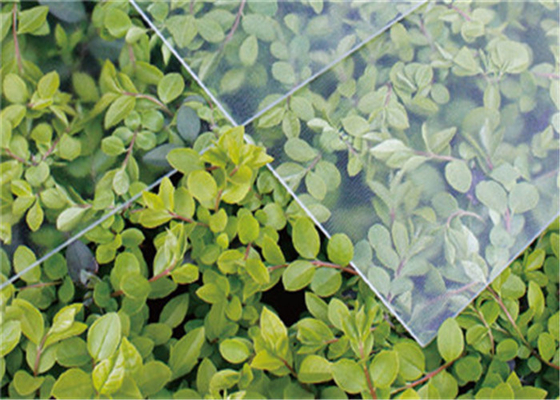

Ultra White Low Iron Solar Glass / Patterned Transparent Solar Glass For Solar Panel 0



Ultra White Low Iron Solar Glass / Patterned Transparent Solar Glass For Solar Panel 1



Packaging&Delivery

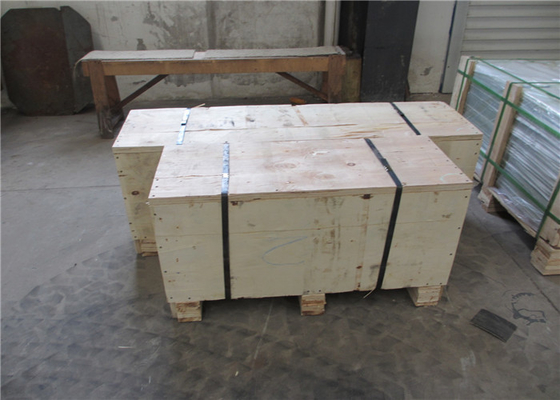

Packaging Detail: Wooden/plywood case or carton, with paper/powder interlayer



Ultra White Low Iron Solar Glass / Patterned Transparent Solar Glass For Solar Panel 2
