Clear Float Solar Tempered Glass 3.2mm Thickness For Window Glass Construction

1 Square Meter/Square Meters
MOQ
negotiation
Price
Clear Float  Solar Tempered Glass 3.2mm Thickness For Window Glass Construction
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

solar pv glass

,

solar module glass

Basic Infomation
Place of Origin: HEBEI, CHINA
Brand Name: YIWO
Model Number: 3.2MM
Payment & Shipping Terms
Packaging Details: wooden crates packing suitable for export transportation
Delivery Time: 7-15 Days
Supply Ability: 30000 Square Meters/Day
Product Description

Solar glass is also called photovoltaic glass and energy saving glass which mainly used on solar panel because of its super light transmittance rate. Solar panel is a thin layer of optoelectronic semiconductor which converting solar energy into electricity. By considering its efficiency, we are using High-transmittance and low reflection glass for its panel. This high strength glass maintains the best image quality by elimination unwanted distortions with the advanced optical technology.



Specification:



3.2mm clear float glass photovoltaic cell solar panel low iron tempered glass ultra-white low iron glass clear solar panel glass



Solar Glass Property Thickness(mm) 3.2mm 4mm
Max Dimension(mm) 2250*3500mm(annealed),1830*2600mm(tempered)
Color Clear and ultra clear
Design Matt/matt, low iron float glass
Glass Type

Solar patterned glass (tempered or non-tempered)

Solar float glass (tempered or non-tempered)

Application

Solar panel

Solar water heater

Surface Condition Structured in same way on both sides acc. To technical requirement
Solar transmittance>

≥91.7%, without AR coating

≥94.7%, with AR coating

Iron Content 100ppm
Poisson's ratio 0.2
Density 2.5g/cc
Young's Modulus 73GPa
Tensile strength 90N/mm2
Compressive Strength 700-900N/mm2
Expansion coefficient 9.03 x 10-6/
Softening point(C) 720
Annealing point(C) 550
Strain point(C) 500

Products Show:

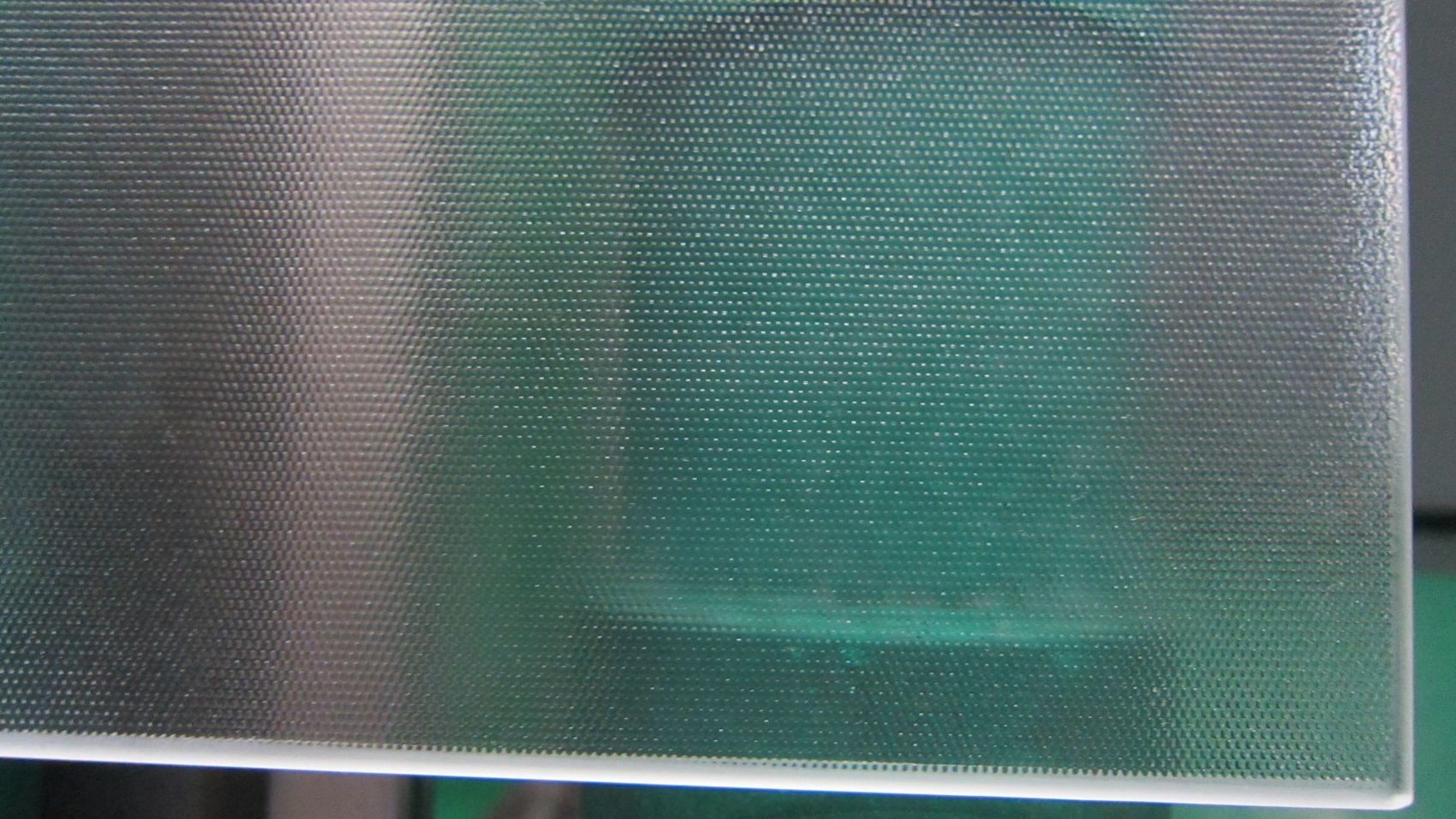

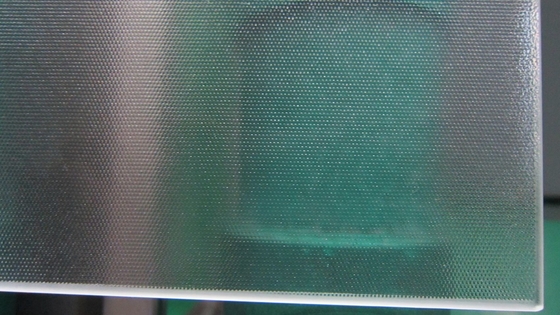

Clear Float  Solar Tempered Glass 3.2mm Thickness For Window Glass Construction 0Clear Float  Solar Tempered Glass 3.2mm Thickness For Window Glass Construction 1

Clear Float  Solar Tempered Glass 3.2mm Thickness For Window Glass Construction 2



Packaging

Clear Float  Solar Tempered Glass 3.2mm Thickness For Window Glass Construction 3Clear Float  Solar Tempered Glass 3.2mm Thickness For Window Glass Construction 4Clear Float  Solar Tempered Glass 3.2mm Thickness For Window Glass Construction 5Clear Float  Solar Tempered Glass 3.2mm Thickness For Window Glass Construction 6
