Clear And Tinted Laminated Glass , Flat / Curved Laminated Glass For Sound Control

1 square meter
MOQ
negotiation
Price
Clear And Tinted Laminated Glass , Flat / Curved Laminated Glass For Sound Control
Features Gallery Product Description Request A Quote
Features
Specifications
Other Name: Custom Laminated Glass
Technique: Clear Glass, Coated Glass, Laminated Glass, Tempered Glass, Tinted Glass
Thickness: 3+0.38+3 Mm,4+0.38+4 Mm,5+0.38+5 Mm,6+0.38+6 Mm,4+0.76+4 Mm,etc
Color: Clear, Black, Green, Grey, Bronze, Dark Blue
Shape: Flat
Structure: Solid
Glass Thickness: 3mm 4mm 5mm 6mm 8mm 10mm 12mm 15mm 19mm
Size: Max 3000*8000mm, Any Customized Size
Highlight:

clear laminated glass

,

tempered laminated glass

Basic Infomation
Place of Origin: Hebei, China
Brand Name: YIWO
Model Number: Float glass
Payment & Shipping Terms
Packaging Details: Sea worthy wooden crate with interlayer paper or powder which is suitable for export transportation
Supply Ability: 750 Ton/Tons per Week
Product Description

Clear and Tinted 6.38mm 8.38mm 10.38mm Flat and Curved Laminated Glass



Products description:



clear laminated glass is a multifunctional glazing material that can be used in a variety of applications. It is manufactured by permanently bonding two or more lites of glass with layers of polyvinyl butyral (PVB) interlayer, under heat and pressure, to create a single construction.



Specification:



Size Max:3000*8000mm; Mini:300*300mm; Normal:1830*2440mm, 2140*3300mm,2140x3660mm, 2250*3660mm, etc.
PVB Color Clear, Green, Blue, Bronze, Grey, Milk white, Pink, Yellow, Red, etc.
Thickness 3+0.38+3mm, 4+0.38+4mm, 5+0.38+5mm, 6+0.38+6mm, 4+0.76+4mm, 5+0.76+5mm, 6+0.76+6mm, 8+1.52+8mm, 10+1.52+10mm, etc.
Quality Meet a criterion of the National GB / 9962-1999 & CE EN 14449:2005
Glass Color Clear, Extra Clear, French Green, Dark Green, Ford Blue, Dark Blue, Bronze, Euro Grey, Dark Grey, Black, etc.
Glass Type Common float laminated glass, tempered laminated glass,
Coated laminated glass, Low-E Reflective laminated glass, Screen printing laminated glass, Bulletproof laminated glass, Fireproof laminated glass, Curved laminated glass, hot bent laminated glass, etc.



Features:



1. Suitable for safety glazing in selected thickness
2. Offers greater personal safety after breakage as it tends to remain intact on the frame.
3. Provides additional security over other glass types
4. Provides improved sound control due to the sound-deafening capabilities of the PVB interlayer.
5.  Offers high resistance against object penetrations thus providing an effective deterrent against forced entry.



Applications:


1. Sloped security glazing & skylights
2. Places where safety is required
3. Security areas subjected to ballistic attacks
4. Sound control & privacy areas

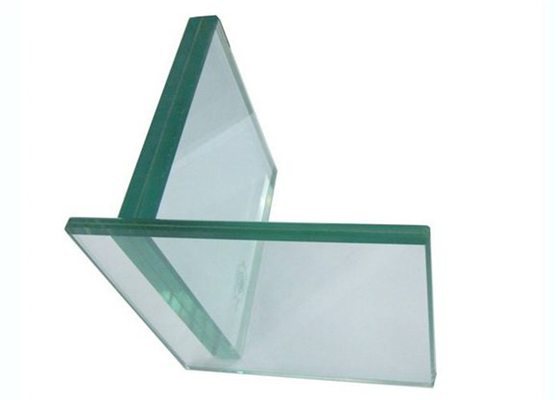

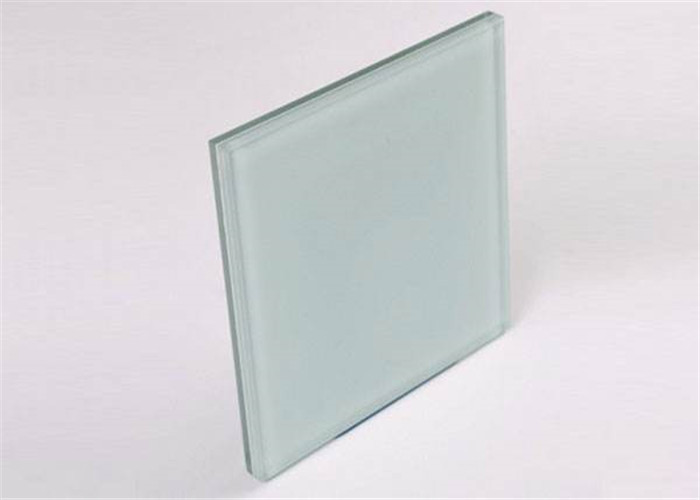

Products pictures:

Clear And Tinted Laminated Glass , Flat / Curved Laminated Glass For Sound Control 0Clear And Tinted Laminated Glass , Flat / Curved Laminated Glass For Sound Control 1

Packaging&Shipping:

1. Paper interleaved between glass sheets;

2. Wrapped by plastic film;

3. Seaworthy wooden crates or plywood crates

Clear And Tinted Laminated Glass , Flat / Curved Laminated Glass For Sound Control 2
