3mm 3.2mm 4mm 5mm 6mm 8mm 10mm Clear online Low-e Glass
Products description:
Planibel G is a purolytic,low emissivity glass,The Low-e coating is applied on a substrate of clear loat glass by a pyrolytic process called online CVD (chemical vapor deposition) method.
In winter,the aim of the coating will reflect the heat back to inside of the building to prevent heat and keep the indoor climate at an even temperature.
In summer,the coating will reduc the amount of re-radiated heat into the building thereby keeping indoor cooler.Total heat gain is reduced.
Specification:
| Thickness | LT% | LR(EX)% | EA% | SF% | SC | W/M2.K |
| 3MM | 82 | 11 | 19 | 72 | 0.83 | 3.7 |
| 4MM | 82 | 11 | 20 | 71 | 0.82 | 3.7 |
| 5MM | 81 | 11 | 23 | 70 | 0.8 | 3.7 |
| 6MM | 81 | 11 | 24 | 69 | 0.79 | 3.7 |
| 8MM | 80 | 11 | 26 | 67 | 0.77 | 3.7 |
| 10MM | 79 | 11 | 28 | 68 | 0.78 | 3.6 |
Features:
1. online hard coating.
2. stable,virtually unlimited shelf life,lone life performance.
3. transparent and neutral color appearance,low light reflection.
4. high light transmission and desirable solar gain.
5. High durability,easy handing&easy processing(cutting,laminating,tempering,bending,screen-printing)
6. Can be used as single glazing(suface position#2)
7. No edge deletion and no special handing for IGU
Application:
LOW-E has multiple applications in residential and commercial buildings and also domestic electric appliances like ovens and referigerator doors.

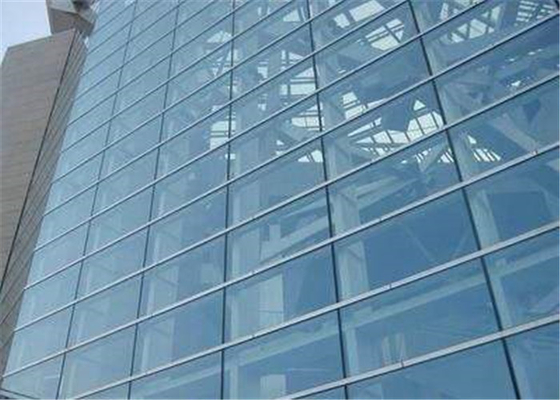

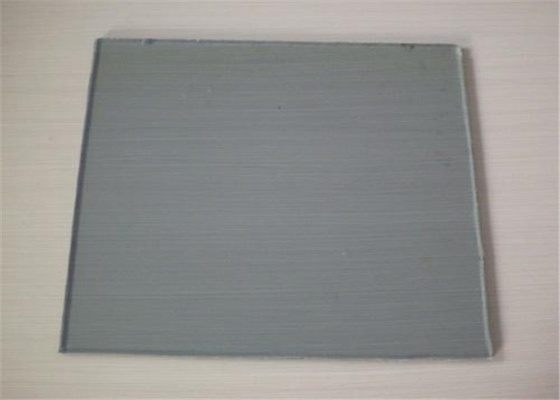

Products pictures:
Packaging&Shipping:
