Ultra White Low Iron Solar Glass Anti Reflective Coating Low Iron Tempered Solar Glass

10 Square meters
MOQ
negotiation
Price
Ultra White Low Iron Solar Glass Anti Reflective Coating Low Iron Tempered Solar Glass
Features Gallery Product Description Request A Quote
Features
Specifications
Other Name: Solar Tempered Glass
Function: Decorative Glass, Heat Reflective Glass, Low-E Glass
Certificate: CCC/ISO9001/TUV/CPVT
Transmittance: Over 91.6%
Material: High Quality Float Glass
Color: Ultra Clear
Technique: Tempered Glass
Sample: Available
Highlight:

low iron tempered glass

,

low iron clear glass

Basic Infomation
Place of Origin: Hebei,China
Brand Name: YIWO
Model Number: Tempered glass
Payment & Shipping Terms
Packaging Details: Seaworthy wooden crates with paper inside every two sheets which is suitable for export transportation
Delivery Time: 5-7 working days
Product Description

Ultra White Anti Reflective Coating Low Iron Tempered Solar Glass



Products description:



Solar Panel Glass is a high performance low iron pattern glass with very high solar energy transmittance. When toughened, its strength and durability make it the ideal choice for crystalline silicon photovoltaic application as well as for solar thermal collectors.



Specification:



Thickness 3.2mm, 4mm, etc.
Thickness tolerance 0.2mm
Further Process cleaning, cutting, rough grinding, hole, etc.
Surface Mistlite single pattern or ultra clear
Visible light Transmittance 91.60%
swelling coefficient 9.03×10-6/°C
Solar Transmittance 92%
Solar reflectance 7.40%
Tensile modulus 42Mpa
Total solar heat gain coefficient 92.20%
Shading Coefficient 1.04% Performance varied due to different thickness



Features:



1. better light-transmitting properties

2. low reflection

3. high strength



Application: It is widely used as water heater, solar panel, solar power generator.



Products pictures:

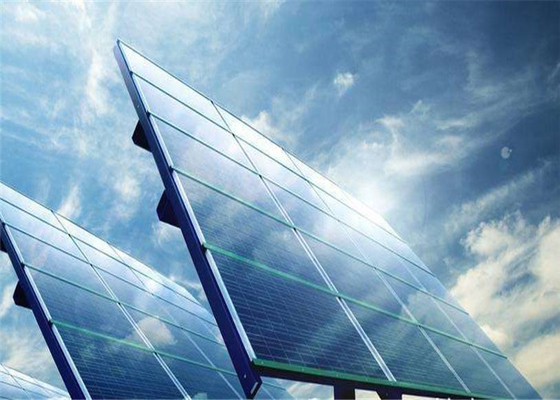

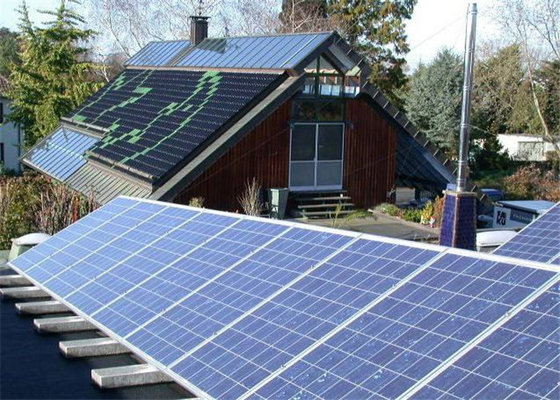

Ultra White Low Iron Solar Glass Anti Reflective Coating Low Iron Tempered Solar Glass 0Ultra White Low Iron Solar Glass Anti Reflective Coating Low Iron Tempered Solar Glass 1

Packaging&Shipping:

Ultra White Low Iron Solar Glass Anti Reflective Coating Low Iron Tempered Solar Glass 2
