Insulated Glass Panels,Double Glazing Insulated Glass, Insulating glass with CE & ISO
Products Description:
Insulated glazing (IG), more commonly known as double glazing (or double-pane, and increasingly triple glazing/pane) are double or triple glass window panes separated by an air or other gas filled space to reduce heat transfer across a part of the building envelope.
Insulated Glass Units (IGUs) are manufactured with glass in range of thickness from 3 mm to 10 mm or more in special applications. Laminated or tempered glass may also be used as part of the construction. Most units are manufactured with the same thickness of glass used on both panes[citation needed] but special applications such as acoustic attenuation or security may require wide ranges of thicknesses to be incorporated in the same unit.
To reduce shear effects on the sealed unit (a major cause of premature failure), manufacturers use a rule of thumb that permits a difference of 1 mm between the thickness of the panes of glass used in the unit and still maintain the warranty for the unit.[citation needed] For example, a unit may be ordered with a 4 mm pane on the exterior and a 3 mm pane on the interior. These variations are allowed for architectural and cost reasons. Other combinations can be specified and produced but the manufacturer may reserve the right to limit the term of the warranty or refuse to warranty the unit altogether.
For ease of description the surfaces of a double paned unit are named according to the following convention: Surface #1 (facing outside), Surface #2 (inside of outside pane), Surface #3 (outside of inside pane) and Surface #4 (inside surface of inside pane). Applying the corresponding nomenclature for triple paned units results in surfaces #1 through #6.
Specification:
|
Max size
|
3300X9000mm
|
|
Min size
|
300X300mm
|
|
Thickness range
|
12mm-60mm.(Double Glazing or Triple Glazing)
|
|
The nor thickness of air layer
|
6mm,9mm,12mm,16mm,19mm(1/4", 11/32", 1/2", 9/16", 19/32", 5/8")
|
|
Gas Filling
|
Dry air, Argon
|
|
Sealant
|
butyl rubber sealant with polysulfide sealant or structural silicone based sealant
|
| Type |
Products can be randomly combined by transparent glass , tinted glass, tempered glass ,Bent tempered glass, coated glass ,
|
Features:
1. Thermal performance
2. Energy-saving building materials
3. Sound insulation
4. No dewing in low temperatures
5. Create aesthetic sense to buildings
Applications:
Restaurant,Hospitals/Schools,Airports,Freezers/Refrigerators,Air conditioned Buildings and other places needing

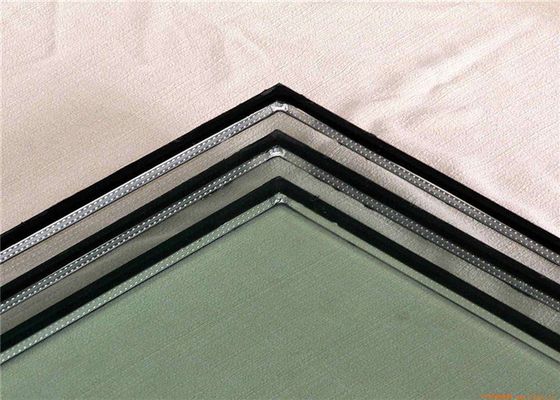

Products pictures:

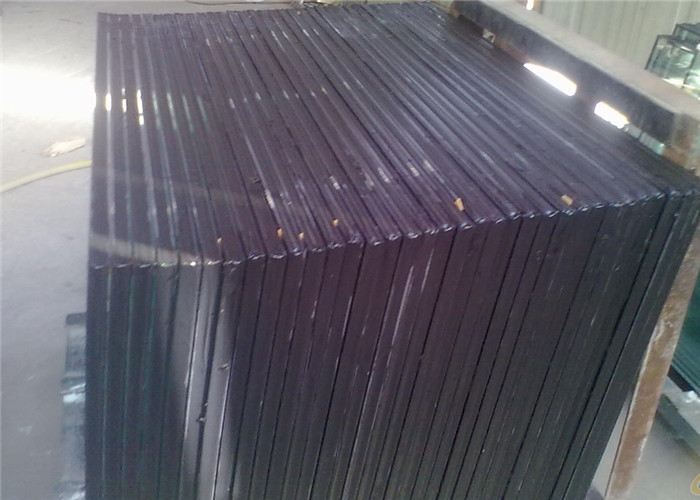

Packaging&Shipping:
