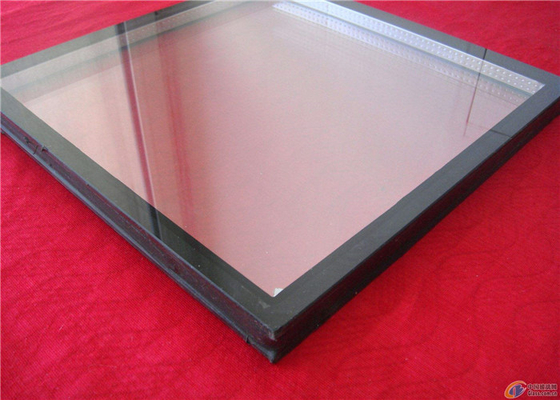

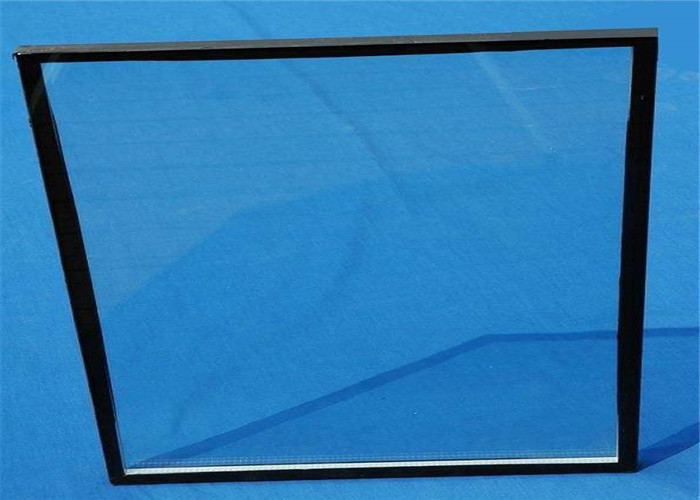

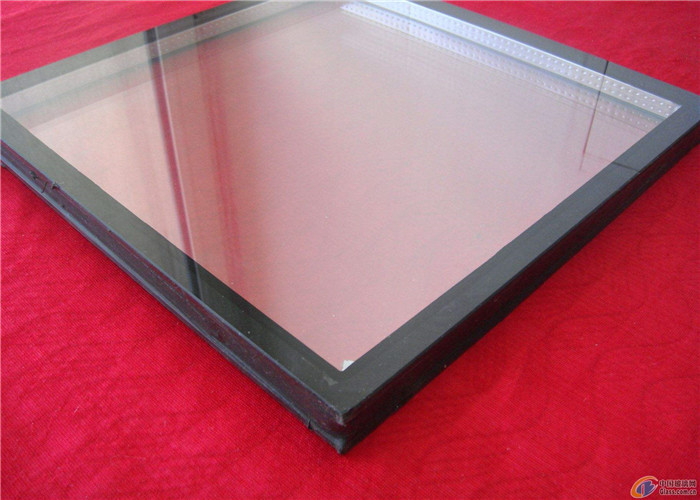

Energy Saving Soundproof Vacuum Double Glazed Insulated Glass
Products Description:
The most common insulating glass unit is constructed with two plies of glass and one sealed air space. This configuration is a dual pane or double pane insulating glass unit, however is commonly shortened to insulating glass.
Insulating glass is used due to the improvement in solar performance it provides. The most significant improvement is thermal performance (u-value) which improves by approximately 50% when compared to a monolithic glass ply. This improvement occurs whether the glass is coated or uncoated.
In addition to the improved solar performance, insulating glass offers a greater availability of coatings. Low-E coatings which cannot be exposed, and therefore cannot be used with monolithic glass, can be used inside the insulating unit where they are protected by the hermetically sealed space.
Insulating units also have more aesthetic possibilities than monolithic glass. The Low-E coating and silk-screen pattern, if desired, are applied to the exterior ply of glass leaving the interior ply available for additional treatment. For a spandrel location, a full coverage opaque ceramic frit can be applied to the inner face . For vision areas where daylight is desired but view through needs to be minimized, a translucent ceramic frit can be applied to the surface facing the airspace.
Specification:
| Item Name | Insulated Glass |
| Thickness | 6+12+6mm,6+15+6mm,6+14+6mm,6+19+6mm,etc |
| Max Size | 18000mm x 3600mm (except for manual production) |
| Min Size | 180mm x 350mm |
| Glass Color | Clear, Dark Bronze, Light Bronze, Dark Grey, Euro Grey, Mist Grey, |
| Dark Green, F. Green, Dark Blue, Lake Blue etc. | |
| Certificate | CE,CSI,ASTM,ISO9001, AS/NZS2208:1996, SGS, EN12150. |
| Experience | We manufactured and exported the glass since 2008. |
| Packing | Safety sea-worthy wooden or plywood packing. |
| Shipping | SEA,AIR, Express |
| Delivery Term | EXW, FOB, CIF. |
| Payment | T/T, Western Union,L/C,Paypal |
| Production Lead Time | 1~2 weeks |
Features:
1. Independent research and development technologies
2. High quality float glass
3. Long term storage and convenient logistics
4. Different size specification
5. Sufficient supply
Packaging&Delivery:
Packaging details:
1. Putting hard paper between glass
2. Wrapping glass into the strong plywooden crates
3. Fastening the crates with steel belts
Delivery Time: 7-15 days
