Double Glazing Replacement Glass , Insulated Tempered Glass Panels For Curtain Wall

50 Square Meters
MOQ
negotiation
Price
Double Glazing Replacement Glass , Insulated Tempered Glass Panels For Curtain Wall
Features Gallery Product Description Request A Quote
Features
Specifications
Other Name: Hollow Glass
Processing: Toughened
Structure: Hollow
Shape: Flat
Material: Clear/Ultra Clear Float Glass
Function: Heat Reflective Glass, Low-E Glass
Air Thickness: 6A/12A/18A
Size: Customized
Highlight:

double glazed window glass

,

vacuum insulated glass

Basic Infomation
Place of Origin: Hebei, China
Brand Name: YiWO
Model Number: Insulated Glass
Payment & Shipping Terms
Packaging Details: Solid wood cases suitable for sea and land transportation
Supply Ability: 10000 Square Meter/Square Meters per Day
Product Description

Tempered Double Glazed Insulated Window Building Glass for Curtain Wall



Products Description:



insulated tempered glass panelsis made of two or more pieces of glass glazing sheets which might be low e or reflective glass or normal float colored glass and use sealant gumming and aluminum spacers which was filled with desiccant together. Insulated glass/Hollow glass/IGU/Double glazing glass with the perimeter of the spacer that gets in contact with the glass is properly sealed with primary and secondary sealants to ensure it with air/argon tight. Insulated glass not only could save energy power, also it can get sound insulation. two layers of glass with an air between them maximally improves the thermal performance, the glass keeps low temperatures in the summer and higher temperature in the winter, enables to reduce the energy use, provides professional reduction of sound coming through the windows, it is strenghtened so as to provide effective and highly withstanding barrier for wind, heavy rains and others.



Specification:



GLASS TYPES
Float glass,Tempered glass ,laminated glass, reflective glass,
COLOR Clear, Red, Blue,Green ,Orange,etc.
GLASS THICKNESS 5mm+Air+5mm,6mm+Air+6mm,8mm+Air+8mm, etc.
AIR THICENESS 4mm,6mm,9mm,12mm,15mm,16mm
SIZE max: 3660mmx2440mm
STRUCTURE 1. Optical performance Visible LT 10%-80% and LR 13%-35% depends on different panes of Insulated glass
2. Thermal feature Insulating glass can reduce U value, especially when filled with inert gas
3. Sound insulation Insulated glass can lower the noise, if applied with laminated pane,80 decibels of traffic noise could be as low as 45 decibels



Features:



1. Its excellent efficiency in solar heat insulation, greatly reduces cooling loads.
2. The dry air inside the enclosure renders the surface free from misting.
3. More excellent efficiency will be if fill in argon or other inert gases.







Products Pictures:

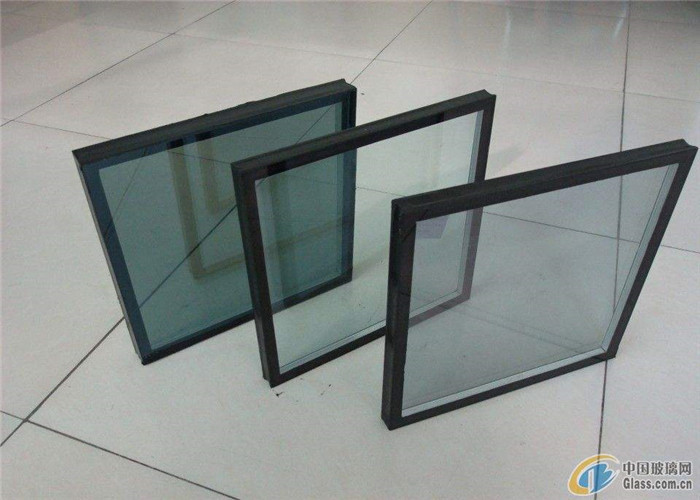

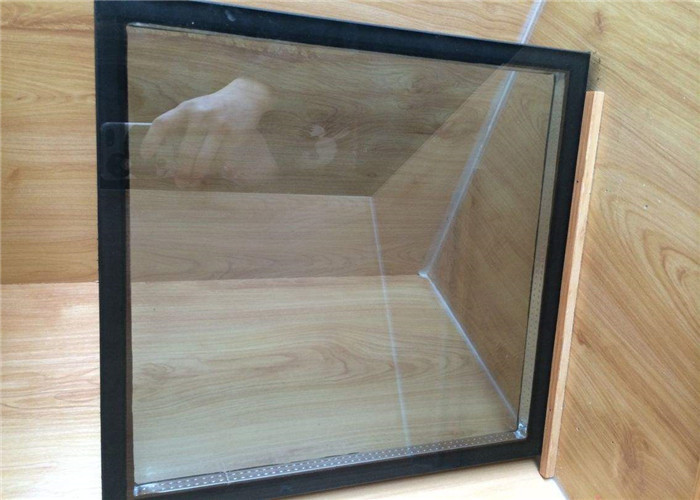

Double Glazing Replacement Glass , Insulated Tempered Glass Panels For Curtain Wall 0Double Glazing Replacement Glass , Insulated Tempered Glass Panels For Curtain Wall 1


Packaging & Delivery:


Packaging Details:

1. Interlay paper or plastic between two sheets;
2. Seaworthy wooden crates;
3. Iron belt for consolidation.

Delivery Time: 7~15 days after received the deposit .

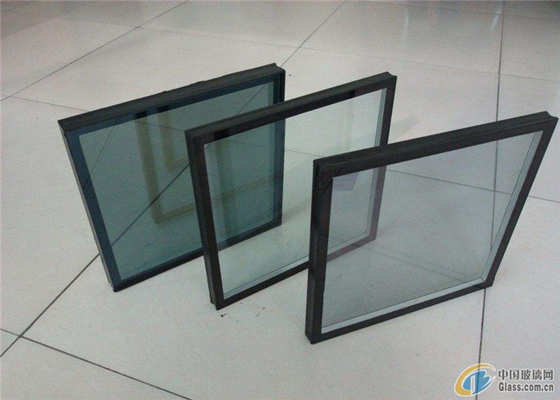

Double Glazing Replacement Glass , Insulated Tempered Glass Panels For Curtain Wall 2
