Size Customized Double Glazed Insulated Glass For Window / Door Sample Available

20 Square Meter/Square Meters
MOQ
negotiation
Price
Size Customized Double Glazed Insulated Glass For Window / Door Sample Available
Features Gallery Product Description Request A Quote
Features
Specifications
Other Name: Heat Insulating Glass
Function: Decorative Glass, Low-E Glass, Decorative Glass
Technique: Tempered Glass
Sample: Available
Grade: First Grade
Size: Customer Requirement
Structure: Solid
Usage: Window
Highlight:

double glazing tinted glass

,

vacuum insulated glass

Basic Infomation
Place of Origin: Hebei, China
Brand Name: YIWO
Model Number: Float Glass
Payment & Shipping Terms
Packaging Details: Wooden packing
Delivery Time: 7-15 days
Supply Ability: 100000 Piece/Pieces per Month
Product Description

5mm+5mm 6mm+6mm 8mm+8mm 6/9/12A Double Glazed Insulated Glass



Products Description:



double glazed window glass has excellent performance on reduction of heat gain or loss. It's made of two or more pieces of glass with the middle part separated by the hollow Aluminum spacer which is filled with the drier. The hollow glass part is filled with dry air or inert gas and sealed by butyl glue, sulfur glue or structural sealant.



Specification:



Glass Thickness
3mm,4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm
Spacer Thicknesss 6A, 9A, 12A, 15A, 20A
Color Clear, bronze, grey, green, blue
Size Max: 2700x3700mm, Min:180x350mm custom sizes
Glass composition Float glass, laminated glass, tempered glass
Applications Windows, doors, curtain wall



Certifications

CE, ISO, CCC, BS6202



Feature:



1. Heat insulation .

Heat insulation performance of insulating glass is the most ideal among all processed glass products availbe in market.Heat transfer coefficient U value can be effectively reduced by insulating glass.

2. anti -fog.

because it is no transmitter between two glasses .the middle of the two glass 's air is stable.So .the two glass won't foging.

3. Sound proof .

Insulating glass is ideal sound insulating material. Normal IGU can reduce noise by 30 decibel, IGU filled with inert gas can further reduce 5 decibel.

4. Energy-saving

Low-e glass can reflect most of the heat back .so , the temperature of the house will be quite stable.



Applications:



Restaurant,Hospitals/Schools,Airports,Freezers/Refrigerators,Air conditioned Buildings and other

places needing indoor air condition.

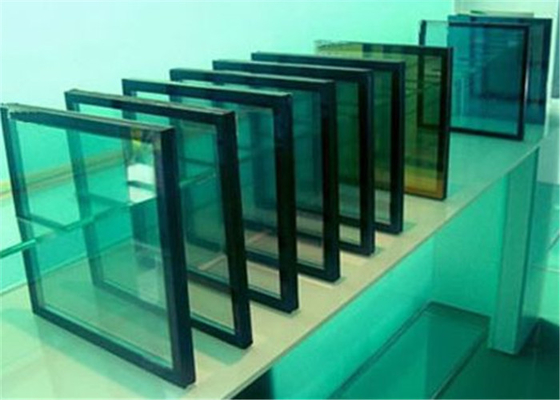

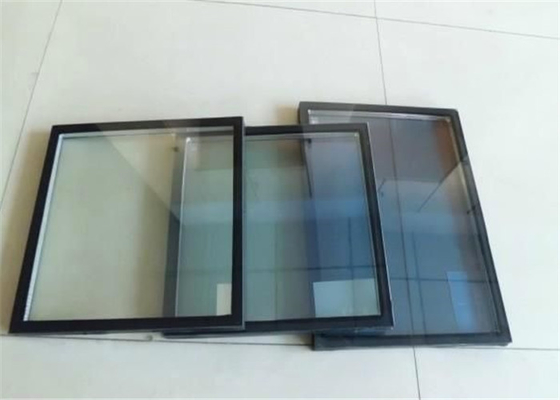

Products Pictures:



Size Customized Double Glazed Insulated Glass For Window / Door Sample Available 0Size Customized Double Glazed Insulated Glass For Window / Door Sample Available 1

Packaging&Shipping:

Size Customized Double Glazed Insulated Glass For Window / Door Sample Available 2
