Low Iron Tempered Solar Panel Glass Flat Shape For Solar Module Sample Available

100 square meters
MOQ
negotiation
Price
Low Iron Tempered Solar Panel Glass Flat Shape For Solar Module Sample Available
Features Gallery Product Description Request A Quote
Features
Specifications
Other Name: Solar Tempered Glass
Structure: Solid
Shape: Flat
Sample: Available
Function: Decorative Glass, Heat Absorbation Glass
Technique: Tempered Glass
Material: Ultra White Glass
Color: Clear
Highlight:

clear solar glass

,

transparent solar glass

Basic Infomation
Place of Origin: Hebei, China
Brand Name: YIWO
Model Number: Tempered glass
Payment & Shipping Terms
Packaging Details: 100 pcs/carton/pallet. every sheet interlayed by paper which is suitable for export transportation
Delivery Time: 5-7 working days
Product Description

3.2mm And 4mm Ultra White Low Iron Tempered Solar Panel Glass


Products description:

3.2mm tempered buliding solar panel coating glass take full advantage of the special pattern of diffuse reflectance. Greatly reduce the light reflectivity. So that the light from a variety of angles cases with solar energy high transmittance glass itself, to ensure the absorption of solar energy to a minimum rate; solar photovoltaic glass is solar battery module ideal packaging material. Conventional thickness of 3.2mm, 4.0mm, 6.0mm, also according to customer requirements to production, will be after cutting the glass edge grinding R, reverse C angle, cleaning and intensive processing; this process can avoid the glass by cutting the right-angle, resulting in business process of edge collapse, fissure or cut the hand, and can improve the encapsulation yield.

Specification:


Thickness
Visible Light Visible Light Ultraviolet Solar U Value Sound Insulated
  Transmittance Reflectivity Transmittance Transmittance
(mm)         (dB)

          (W/m2K) Rm Rw
3.2 91.6 8 89.5 91 5.8 26 30
4 91.5 8 89.2 90.8 5.8 27 30


Features:
1.Transmittance : > 93.68%
2.Iron Content: < 120 PPM
3.Thickness : 3.2mm ,4mm,etc
4.Size (Tempered): Customized Sizes


Application:

It mainly used to encapsulations of t the monocrystalline silicon, polycrystalline silicon and amorphous silicons of the solar cell, solar module, solar panel and BIPV panels.

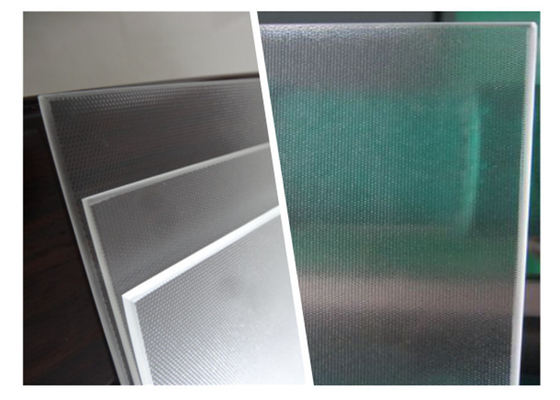

Products pictures:

Low Iron Tempered Solar Panel Glass Flat Shape For Solar Module Sample Available 0
Low Iron Tempered Solar Panel Glass Flat Shape For Solar Module Sample Available 1
Packaging&shipping:
Low Iron Tempered Solar Panel Glass Flat Shape For Solar Module Sample Available 2
