High Transparent Solar Panel Low Iron Tempered Glass For Solar Power System
Products description:
Our solar glass is designed and optimised to suit the requirements of various solar technologies with properties such as high solar energy transmittance, strength and durability.
Features:
1. Prismatic/Matte product available with Anti-Reflective (AR) coating for optimal solar energy conversion.
2. Ultra high solar energy transmittance and low light reflectance.
3. Available in fully tempered/toughened form to provide excellent strength with resistance to hail, mechanical impact and thermal stress.
Specification:
| item | Specification |
| Impact resistance | No breakage with 227g steel ball from the height of 1.0m onto a 300x300mm specimen. |
| Static load strength | No breakage under the static load of 245kg/m 2 in ten minutes. |
| Specimen should be an actual product. | |
| Status of fragments | 40pcs/5cm x 5cm or more |
| Conformity to | EN12150-1 |
| EN standard | EN12600 |
Application:
It mainly used to encapsulations of t the monocrystalline silicon, polycrystalline silicon and amorphous silicons of the solar cell, solar module, solar panel and BIPV panels.

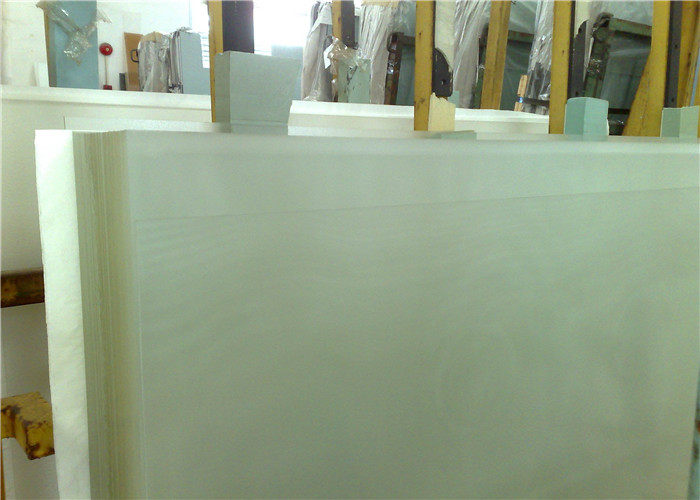

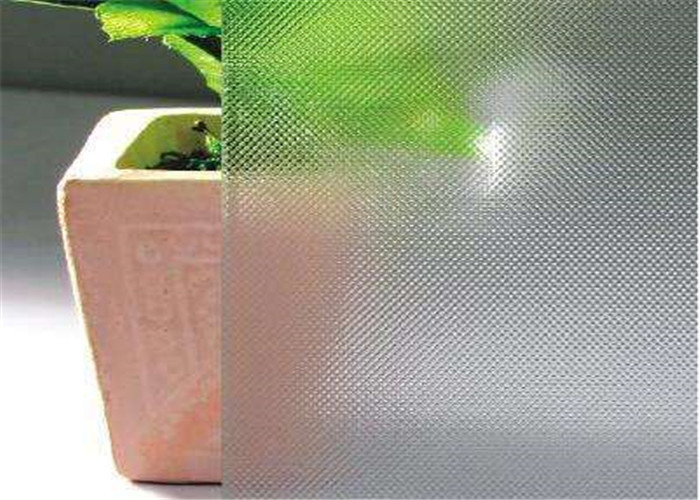

Products pictures:
Packaging&Shipping:
