Low Iron AR Coating Solar Glass / Ultra Clear Tempered Glass For PV Panel

10 Square meters
MOQ
negotiation
Price
Low Iron AR Coating Solar Glass / Ultra Clear Tempered Glass For PV Panel
Features Gallery Product Description Request A Quote
Features
Specifications
Other Name: Solar Tempered Glass
Edge: Edges Ground , Round Edge
Structure: Solid
Shape: Flat
Quality: Grade A
Sample: Free
Technique: Tempered Glass
Thickness: 3.2mm&4mm
Highlight:

flat solar glass

,

transparent solar glass

Basic Infomation
Place of Origin: Hebei, China
Brand Name: YIWO
Model Number: Float glass
Payment & Shipping Terms
Packaging Details: Seaworthy strong plywood crates with paper inside every two sheets which is suitable for export transportation
Delivery Time: 5-7 working days
Supply Ability: 450 Ton/Tons per Day
Product Description

3.2mm AR-Coating Solar Panel Ultra Clear Tempered Glass For PV Panel



Products description:



Solar Glass is a high performance low iron pattern glass with very high solar energy transmittance



Features:



1. Low iron content
2. Ultra high solar energy transmittance and low light reflectance.

3. The pyramidal patterns can assist in the laminating process during module manufacture, but can be used on the external surface if desired

4. Easily to be cut, coated and tempered.
5. Choice of patterns, either Prismatic/Matte or Matter/Matte to suit the specific application


Specification:

Thickness
3.2mm,4mm
Visible Light Reflectance 7.30%
Visible Light Transmittance 91.60%
Solar Reflectance 7.40%
UV Transmittance 86.80%
Total Solar Heat Gain Coefficient: 92.20%
Shading Coefficient: 1.04%

Application:

This product can be applied on solar panel,solar collectors,and greenhouses.
Products pictures:

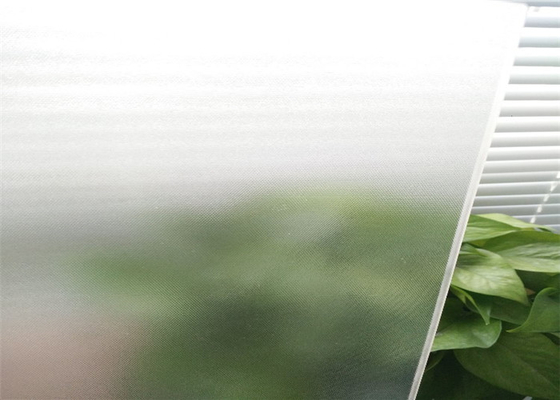

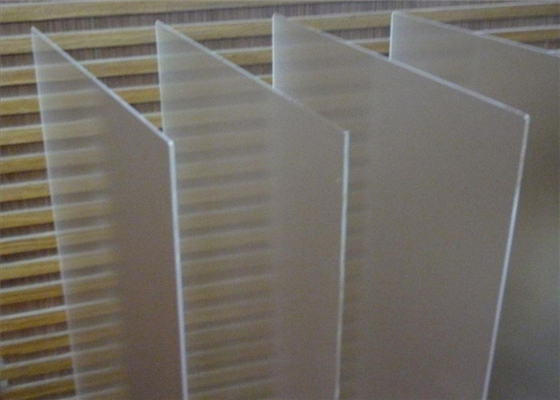

Low Iron AR Coating Solar Glass / Ultra Clear Tempered Glass For PV Panel 0Low Iron AR Coating Solar Glass / Ultra Clear Tempered Glass For PV Panel 1

Packaging&Shipping:

Low Iron AR Coating Solar Glass / Ultra Clear Tempered Glass For PV Panel 2
