Clear Low Iron Solar Panel Glass 3.2mm / 4.0mm Thickness Sample Available

10 Square meters
MOQ
negotiation
Price
Clear Low Iron  Solar Panel Glass 3.2mm / 4.0mm Thickness Sample Available
Features Gallery Product Description Request A Quote
Features
Specifications
Other Name: Tempered Solar Glass
Function: Decorative Glass
Technique: Tempered Glass
Size: Customer Size
Thickness: 3.2mm&4mm
Certificate: CCC/ISO9001/CE
Delivery Time: 7-15 Days
Sample: Available
Highlight:

flat solar glass

,

transparent solar glass

Basic Infomation
Place of Origin: Hebei, China
Brand Name: YIWO
Model Number: Float glass
Payment & Shipping Terms
Packaging Details: Solid wooden crates with paper inside every two sheets which is suitable for export transportation
Delivery Time: 5-7 working days
Supply Ability: 500 Ton/Tons per Day
Product Description

3.2 MM 4MM Clear Low Iron Mistlite Tempered Solar Panel Glass



Products description:

Solar glass is an ordinary glass that use application of research and development of latest technology, plus a layer of coating to collect solar energy.

Specification:

Type
tempered solar glass
Size Min size 150*150mm, Max size 2000*1650mm,
Thickness 2.5mm, 3.2mm and 4mm
Further Process cleaning, cutting,Tempering, etc.
Surface Mistlite single pattern
Visible light reflectance 7.30%
Visible light Transmittance 91.60%

Features:

1. Low iron content
2. Ultra high solar energy transmittance and low light reflectance.
3. Choice of patterns, either Prismatic/Matte or Matter/Matte to suit the specific application
4. The pyramidal patterns can assist in the laminating process during module manufacture, but can be used on the external surface if desired
5. Easily to be cut, coated and tempered.

Application:

Mainly used for solar photovoltaic and solar thermal components encapsulate or cover glass solar glass packaging production process which is mainly rolling method using a special flower roll, in the ultra-white glass, specially designed to suppress the lower surface of the pyramid pattern, pressing the upper surface of the suede special pattern, through a special embossed pattern designed to reduce the glass directional reflection, increasing the reflection effect, promote their efficient absorption of solar energy, to maximize the transmittance of the sun's rays, to improve power generation performance solar cells is an indispensable component parts.

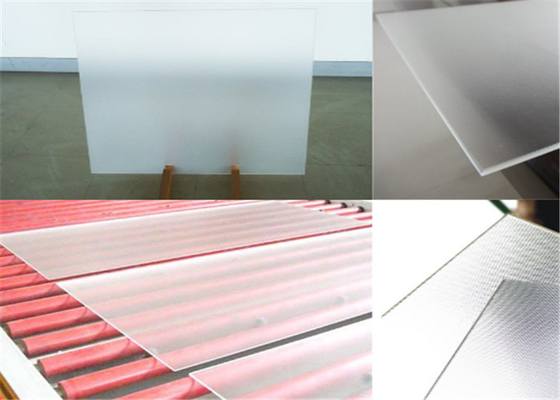

Products pictures:

Clear Low Iron  Solar Panel Glass 3.2mm / 4.0mm Thickness Sample Available 0Clear Low Iron  Solar Panel Glass 3.2mm / 4.0mm Thickness Sample Available 1

Packaging&Shipping:

Clear Low Iron  Solar Panel Glass 3.2mm / 4.0mm Thickness Sample Available 2
